Mobile Weld Fume Extractor

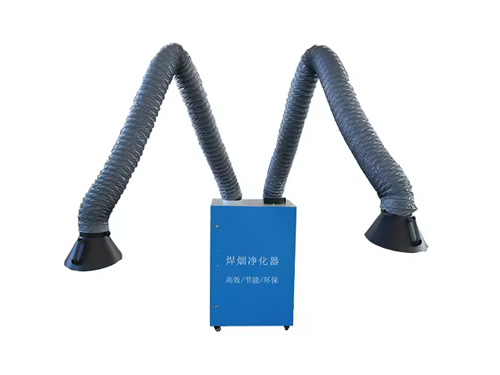

Mobile welding fume purifier is a purification device designed specifically for the treatment of small metal particles suspended in the air during welding,cutting,and polishing,which are harmful to the human body.It is suitable for single and double workstations and is lightweight and flexible.It is equipped with a 2-3 meter long flexible suction arm,which can move flexibly in different work locations and is easy to operate.

Place of use

Mobile welding fume purifier is used for workstations that generate smoke and dust during welding,polishing,cutting,grinding and other processes,as well as for the recycling of metals and valuable materials.It can purify a large amount of small metal particles suspended in the air that are harmful to the human body,reducing harm to workers'bodies.It has the characteristics of purification,low noise,flexible use,and small footprint.

Suitable for workplaces that generate smoke such as arc welding,carbon dioxide shielded welding,MAG welding,carbon arc gas gouging welding,gas fusion cutting,and welding.

Composition structure of mobile welding fume purifier

The main parts of the mobile welding smoke purifier include:smoking arm,vacuum hose,vacuum hood(with air volume regulating valve),flame retardant net,flame retardant filter element,pulse blowback device(optional),pulse solenoid valve(optional),pressure difference gauge(optional),clean room,activated carbon filter(optional),dust drawer combination,flame retardant sound-absorbing cotton,new Korean style wheels to be braked,fan,motor,and electric control box.

Correct use and operation of mobile welding fume purifier

1.Before connecting the power supply,it is necessary to check whether the voltage,power supply frequency,and equipment label regulations match;

2.Install grounding wire;

3.Check the contact seal of the maintenance door;

4.Check if the filter cartridge is in tight contact;

5.Check if the current of the power switch is consistent with the current used by the motor;

6.The rotation direction of the motor creates a sense of air intake in the suction hood;

7.After selecting the operating area,tighten the brake wheels of the purifier to prevent the equipment from sliding;

8.Pull the inhalation mask to determine the inhalation distance angle,and then make the inhalation arm determine a fixed position

9.After confirming that the overall purifier is operational,turn the power switch to start suctioning welding fumes;

10.Do not open the box door when the purifier is in operation;

11.Before restarting the purification equipment,it is necessary to confirm that the purification fan has stopped;

12.Regularly clean the dust during long-term use.The mechanical filter can be directly removed and blown from the inside out with an air compressor to blow away the surface dust before installation and continued use.Static electricity requires pulling out the electrode plate,cleaning the surface of the electrode plate,and allowing it to air dry naturally before installation and continued use.
