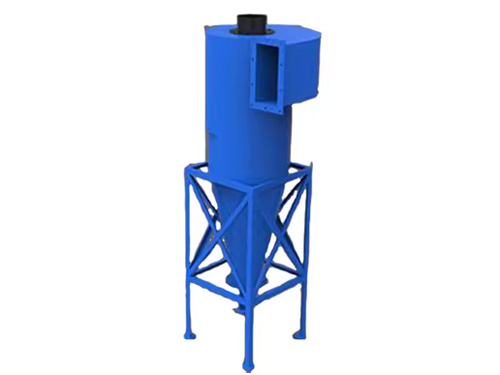

Woodworking Cyclone Filter

The woodworking cyclone dust collector consists of three parts: a cyclone body, an ash collection hopper, and a volute (or air collection cap). According to the number of cylinders, there are five combinations: single cylinder, double cylinder, three cylinder, and six cylinder. Each combination has two types of air outlet: Type I horizontal air outlet and Type II (upper air outlet). For Type I twin tube combination, there are two types of combinations: center inlet and outlet air and side inlet and outlet air. Type I single tube and triple tube only have side outlet air, while four tube and six tube combination only have center inlet and outlet air. For various combinations of Type II, any of the above Type I inlet positions can be used. This dust removal equipment has the characteristics of low resistance, large dust removal and processing air volume, stable performance, small footprint, simple structure, practicality and low cost. Suitable for coarse and intermediate dust purification in various mechanical processing, metallurgical building materials, and mining operations.

In order to meet increasingly strict requirements for labor protection, environmental protection, and product processing accuracy, woodworking cyclone dust collectors are used by woodworking manufacturing enterprises to treat the dust generated during the production process. The large amount of fine dust and sawdust generated in the production process of woodworking manufacturing not only adheres to equipment and workpiece surfaces, affecting processing quality, causing workpiece scrap or frequent equipment failures, but also pollutes the working environment, leading to silicosis. Therefore, ventilation and air exchange are carried out in the workshop to promptly remove the generated dust and purify the dusty air to maintain the cleanliness of equipment and workpiece surfaces.
