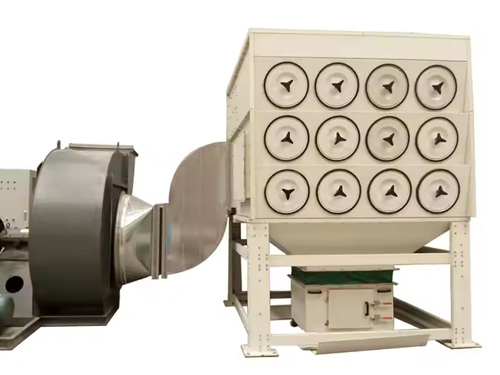

Pulse filter cartridge dust collector

Pulse filter cartridge dust collector application area

Liquid solid separation and fine material recovery in the fields of coke,chemical industry,dyes,pharmaceuticals,carbon black,plastics,etc;Flue gas treatment and dust removal in steel mills,foundries,ferroalloy plants,refractory plants,ironworks,power plants,etc;Production sites for asphalt concrete,building materials,cement ceramics,lime,gypsum,etc;Dust control and purification collection in mining,grain processing,flour,electronics industry,wood processing,etc;Filtration of smelting flue gas from rare metals such as lead,zinc,aluminum electrolysis,and copper,and recovery of fine materials;Flue gas filtration treatment for waste incinerators,coal-fired boilers,fluidized bed boilers,etc.

Equipment features

The pulse filter cartridge dust collector adopts a sinking flow layout,and the synchronous cleaning effect of the dust collector is good;

2/The filter cartridge filter material is pleated,which has a large filtration area,small footprint,and large processing air volume for the same volume;

3/The pulse filter cartridge dust collector adopts the pulse spraying online dust cleaning method,which has high working efficiency;

4/The filter cartridge of the pulse filter cartridge dust collector adopts imported polyester fiber as the filter material,with strong filtering ability and can block most submicron dust particles,resulting in good dust removal effect;

Compared with a single machine dust collector of the same volume,the filter cartridge dust collector has a smaller filtering wind speed,less resistance,and higher energy-saving efficiency.

Working principle

After the dusty gas enters the dust collector through the air inlet,some of the coarser dust particles fall into the ash hopper due to inertia,collision,natural settling,etc.Most of the dust enters from the bottom of the dust removal chamber with the airflow,and the dust is blocked on the outer surface of the filter cartridge.The clean gas is discharged through the air outlet;When the ash layer on the surface of the filter cartridge is thick,the pulse controller sends a command to open the spray valve,and the compressed air in the air bag is sprayed out at high speed through the spray pipe,blowing the dust on the surface of the filter cartridge down and falling into the ash hopper.

The collected dust is discharged through the ash discharge valve,and after blowing and cleaning the dust,the dust collector resumes normal operation.The dust removal and filtration of the dust collector operate automatically,repeating the process to achieve continuous filtration and purification of dust and gas
